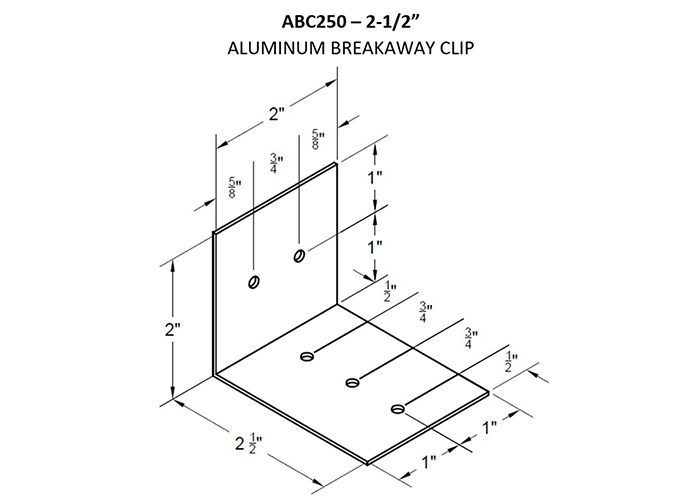

Aluminum Breakaway Clip 2.5in - 500 per Box
Area Separation Wall
Aluminum breakaway clips, also called Aluminum burn clips, are used on both sides of area separation walls, for support by the adjacent structure. Clips are designed so that when a fire occurs, the clips on the fire side of the wall will melt, allowing the burned structure to fall away without dragging down the protective area separation wall. This maintains protection of the adjacent building, no matter which side of the wall is exposed to fire.
Material: Aluminum 3003-H14
ABC250 Thickness: 0.050” (min) 0.052” (design)
Temperature Range: Heat Softenable at 1000° F
Hole Size: 5/32” (4mm)
Yield Strength: 21 KSI
Tensile Strength: 22 KSI Packaging: 250 per box
Dimensions: 2in x 2in x 2.5in
ABC250 Thickness: 0.050” (min) 0.052” (design)
Temperature Range: Heat Softenable at 1000° F
Hole Size: 5/32” (4mm)
Yield Strength: 21 KSI
Tensile Strength: 22 KSI Packaging: 250 per box
Dimensions: 2in x 2in x 2.5in
$ 288

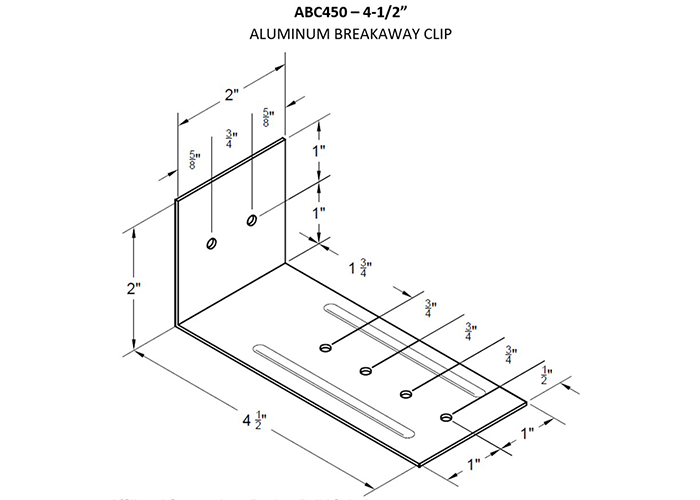

Aluminum Breakaway Clip 4.5in - 250 per Box
Area Separation Wall
Aluminum breakaway clips, also called Aluminum burn clips, are used on both sides of area separation walls, for support by the adjacent structure. Clips are designed so that when a fire occurs, the clips on the fire side of the wall will melt, allowing the burned structure to fall away without dragging down the protective area separation wall. This maintains protection of the adjacent building, no matter which side of the wall is exposed to fire.
Material: Aluminum 3003-H14
ABC450 Thickness: 0.060” (min) 0.063” (design)
Temperature Range: Heat Softenable at 1000° F
Hole Size: 5/32” (4mm)
Yield Strength: 21 KSI
Tensile Strength: 22 KSI Packaging: 250 per box
Dimensions: 2in x 2in x 4.5in
ABC450 Thickness: 0.060” (min) 0.063” (design)
Temperature Range: Heat Softenable at 1000° F
Hole Size: 5/32” (4mm)
Yield Strength: 21 KSI
Tensile Strength: 22 KSI Packaging: 250 per box
Dimensions: 2in x 2in x 4.5in
$ 270

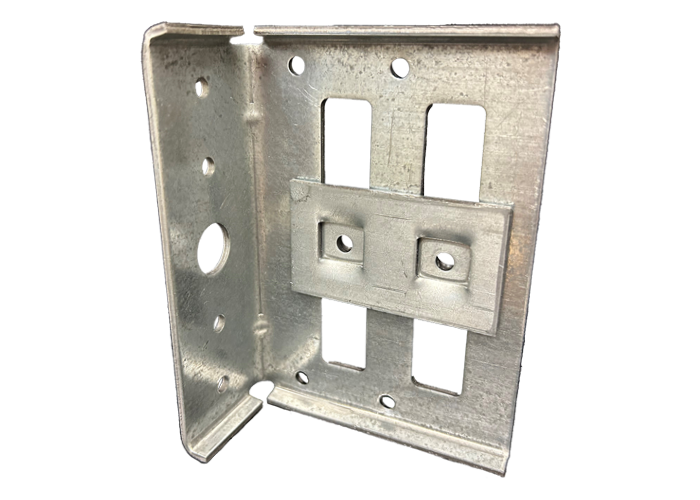

SSTB362 Pail of 25 Bypass Clips 3.625in
Deflection Clips
Super Stud Triple Bypass Vertical Deflection Clip 3.625in long. The Super Stud Triple Bypass clips are used to support exterior wall studs that extend past a roof or floor. The short leg is connected to the edge of the slab or perimeter beam via either #12 screws or a 5/8” diameter large center hole which accommodates up to ½” diameter anchors. The slotted leg of the clip is connected to the exterior wall stud via standard #12 screws inserted through the patented Glide Plate™. This allows for up to 3″ of total vertical movement of the floor or roof without any additional axial load on the stud.
Coating: G90
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy: 50 ksi
Dimensions: SSTB-362: 3.625” x 5” x 1.5”
Packaging: 25 per pail
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy: 50 ksi
Dimensions: SSTB-362: 3.625” x 5” x 1.5”
Packaging: 25 per pail
$ 74.40

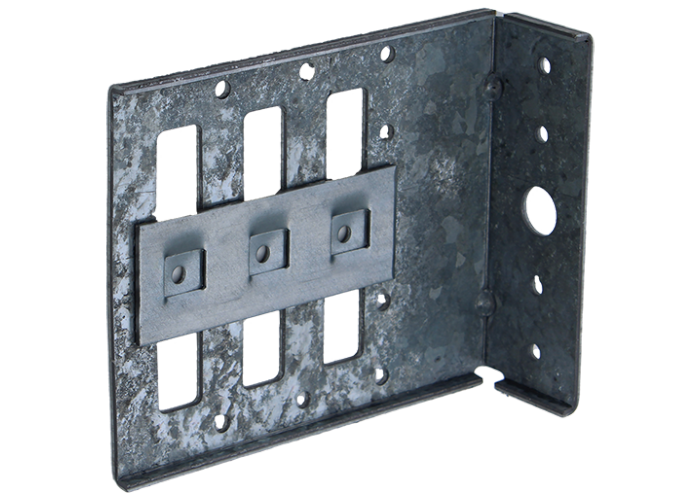

SSTB600
Pail of 25 Bypass Clips 6in
Deflection Clips
Super Stud Triple Bypass Vertical Deflection Clip 6in long. The Super Stud Triple Bypass clips are used to support exterior wall studs that extend past a roof or floor. The short leg is connected to the edge of the slab or perimeter beam via either #12 screws or a 5/8” diameter large center hole which accommodates up to ½” diameter anchors. The slotted leg of the clip is connected to the exterior wall stud via standard #12 screws inserted through the patented Glide Plate™. This allows for up to 3″ of total vertical movement of the floor or roof without any additional axial load on the stud.
Coating: G90
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy: 50 ksi
Coating: G90
Dimensions: SSTB-600: 6” x 5” x 1.5”
Packaging: 25 per pail
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy: 50 ksi
Coating: G90
Dimensions: SSTB-600: 6” x 5” x 1.5”
Packaging: 25 per pail
$ 147

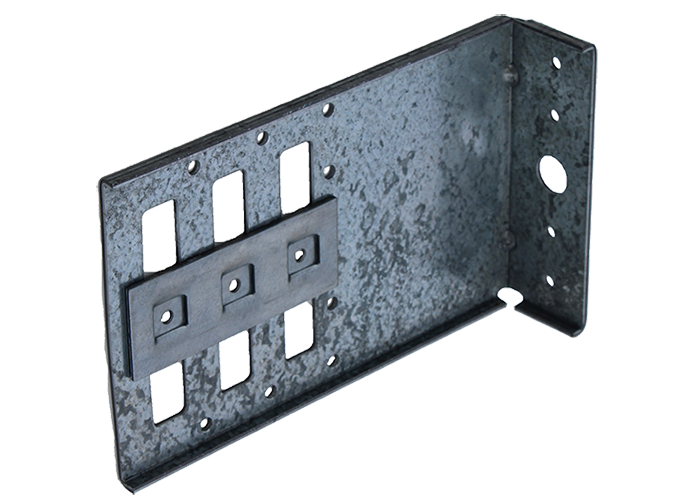

SSTB800
Pail of 25 Bypass Clips 8in
Deflection Clips
Super Stud Triple Bypass Vertical Deflection Clip 8in long. The Super Stud Triple Bypass clips are used to support exterior wall studs that extend past a roof or floor. The short leg is connected to the edge of the slab or perimeter beam via either #12 screws or a 5/8” diameter large center hole which accommodates up to ½” diameter anchors. The slotted leg of the clip is connected to the exterior wall stud via standard #12 screws inserted through the patented Glide Plate™. This allows for up to 3″ of total vertical movement of the floor or roof without any additional axial load on the stud.
Coating: G90
Design Thickness: 0.1017 in
Min. Steel Thickness:0.0966 in
Yield Strength, Fy: 50 ksi
Dimensions: SSTB-800: 8” x 5” x 1.5”
Packaging: 25 per pail
Design Thickness: 0.1017 in
Min. Steel Thickness:0.0966 in
Yield Strength, Fy: 50 ksi
Dimensions: SSTB-800: 8” x 5” x 1.5”
Packaging: 25 per pail
$ 157.50

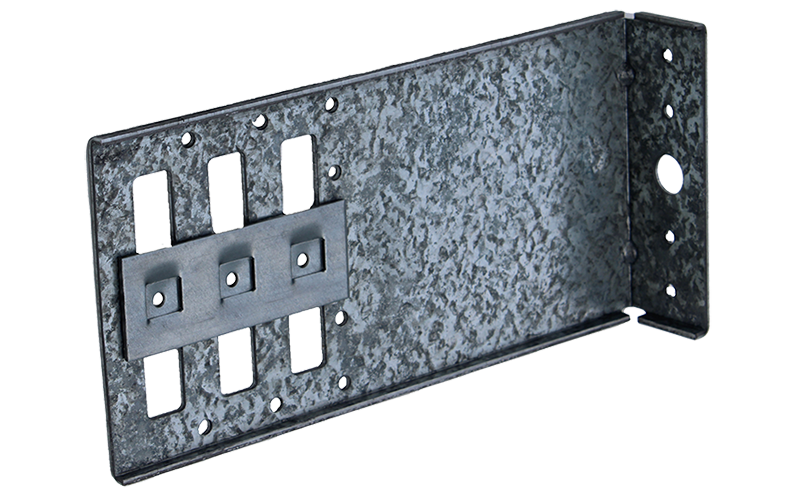

SSTB1000
Pail of 25 Bypass Clips 10in
Deflection Clips
Super Stud Triple Bypass Vertical Deflection Clip 10in long. The Super Stud Triple Bypass clips are used to support exterior wall studs that extend past a roof or floor. The short leg is connected to the edge of the slab or perimeter beam via either #12 screws or a 5/8” diameter large center hole which accommodates up to ½” diameter anchors. The slotted leg of the clip is connected to the exterior wall stud via standard #12 screws inserted through the patented Glide Plate™. This allows for up to 3″ of total vertical movement of the floor or roof without any additional axial load on the stud.
Coating: G90
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy 50 ksi
Dimensions: SSTB-1000: 10” x 5” x 1.5”
Packaging: 25 per pail
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy 50 ksi
Dimensions: SSTB-1000: 10” x 5” x 1.5”
Packaging: 25 per pail
$ 210

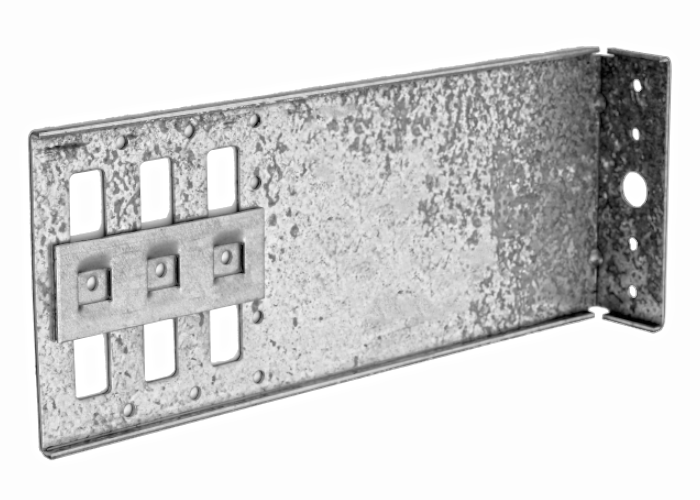

SSTB1200
Pail of 25 Bypass Clips 12in
Deflection Clips
Super Stud Triple Bypass Vertical Deflection Clip 12in long.Super Stud Triple Bypass Vertical Deflection Clip 10in long. The Super Stud Triple Bypass clips are used to support exterior wall studs that extend past a roof or floor. The short leg is connected to the edge of the slab or perimeter beam via either #12 screws or a 5/8” diameter large center hole which accommodates up to ½” diameter anchors. The slotted leg of the clip is connected to the exterior wall stud via standard #12 screws inserted through the patented Glide Plate™. This allows for up to 3″ of total vertical movement of the floor or roof without any additional axial load on the stud.
Coating: G90
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy 50 ksi
Dimensions: SSTB-1000: 10” x 5” x 1.5”
Packaging: 25 per pail
Design Thickness: 0.1017 in
Min. Steel Thickness: 0.0966 in
Yield Strength, Fy 50 ksi
Dimensions: SSTB-1000: 10” x 5” x 1.5”
Packaging: 25 per pail
$ 262.50

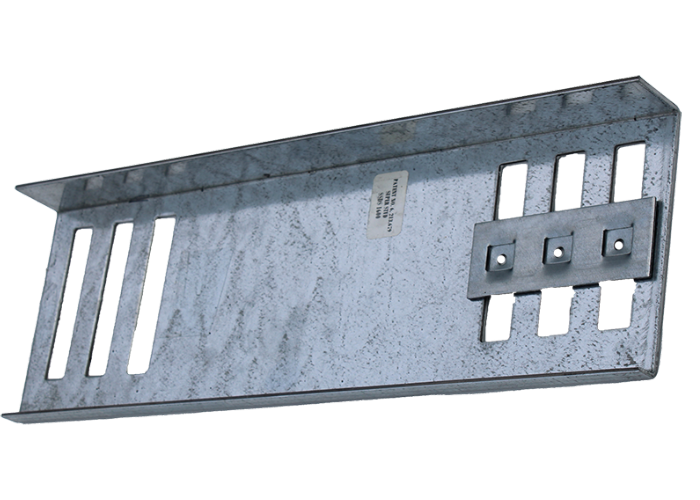

SSDS1600 Bundle of 10 Deflection Strut 16in
Deflection Clips
Super Stud Deflection Strut - Vertical Deflection Clip for attachment to the underside of the slab or beam, extending horizontally to support wall studs.
Packaging: 10 pieces triple banded
Dimensions: 1.5” (horizontal) leg
4.5” vertical (slotted) leg
0.5 bottom stiffener
16” overall length
Dimensions: 1.5” (horizontal) leg
4.5” vertical (slotted) leg
0.5 bottom stiffener
16” overall length
$ 90
CRC Twist Clip 33mil Pail of 250
Rigid Clips
The CRC Twist Clip is a durable, galvanized steel fastener designed for quick and secure attachment of cold-rolled channels in suspended ceiling systems and wall framing. Its easy twist-in mechanism ensures fast installation without the need for special tools, making it ideal for acoustic panels, drywall partitions, and ceiling grids. Works with Studs Up to 8” Deep. Our CRC Twist Clip design provides resistance to both lateral and twisting loads. Use as little as one screw to secure cold-rolled channel (CRC) to stud via pre-drilled guide holes. Provides for fast, easy, and efficient installation with no clamping or welding. Features rounded edges for safety. Comes in two thicknesses, 33 or 43 mil, with G90 galvanized coating.
Coating: CP90 (G90)
Material: ASTM A1003 and A653 ST33H
Width: 2.75 in
Depth: Horizontal (top) leg 1.5 in
Design Thickness: 0.0346”
Minimum Thickness: 0.0329”
Mil Thickness: 33 • Gauge: 20
Yield Strength: 33 ksi
Tensile Strength: 45 ksi
Packaging: 250 per pail
Material: ASTM A1003 and A653 ST33H
Width: 2.75 in
Depth: Horizontal (top) leg 1.5 in
Design Thickness: 0.0346”
Minimum Thickness: 0.0329”
Mil Thickness: 33 • Gauge: 20
Yield Strength: 33 ksi
Tensile Strength: 45 ksi
Packaging: 250 per pail
$ 144
CRC Twist Clip 43mil Pail of 250
Rigid Clips
The CRC Twist Clip is a durable, galvanized steel fastener designed for quick and secure attachment of cold-rolled channels in suspended ceiling systems and wall framing. Its easy twist-in mechanism ensures fast installation without the need for special tools, making it ideal for acoustic panels, drywall partitions, and ceiling grids. Works with Studs Up to 8” Deep. Our CRC Twist Clip design provides resistance to both lateral and twisting loads. Use as little as one screw to secure cold-rolled channel (CRC) to stud via pre-drilled guide holes. Provides for fast, easy, and efficient installation with no clamping or welding. Features rounded edges for safety. Comes in two thicknesses, 33 or 43 mil, with G90 galvanized coating.
Coating: CP90 (G90)
Material: ASTM A1003 and A653 ST33H
Width: 2.75 in
Depth: Horizontal (top) leg 1.5 in
Design Thickness: 0.0451”
Minimum Thickness: 0.0428”
Mil Thickness: 43 • Gauge: 18
Yield Strength: 33 ksi
Tensile Strength: 45 ksi
Packaging: 250 per pail
Material: ASTM A1003 and A653 ST33H
Width: 2.75 in
Depth: Horizontal (top) leg 1.5 in
Design Thickness: 0.0451”
Minimum Thickness: 0.0428”
Mil Thickness: 43 • Gauge: 18
Yield Strength: 33 ksi
Tensile Strength: 45 ksi
Packaging: 250 per pail
$ 156
